塑料外殼限位開關

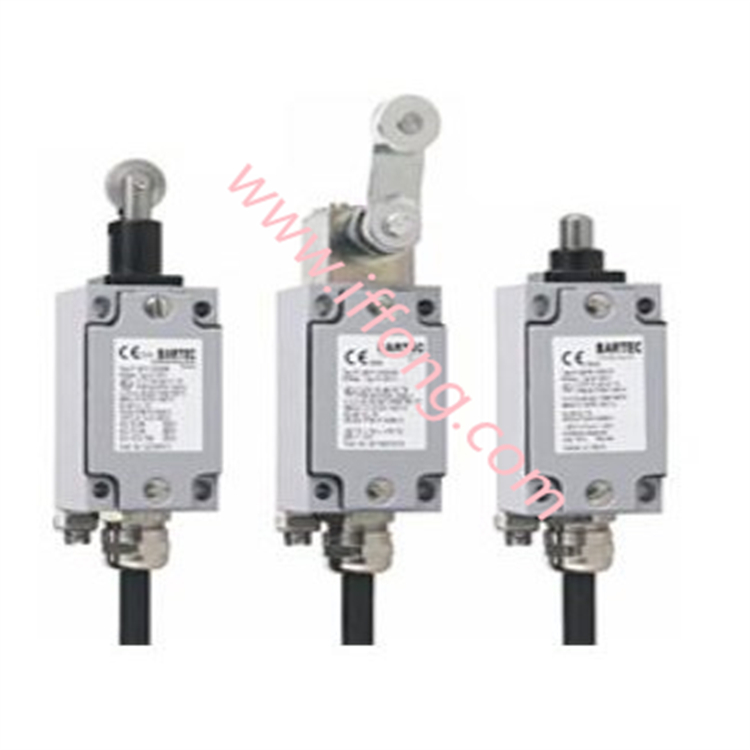

博太科BARTEC限位開關TYP:07-2961-1062/01
疫情因素進口品牌貨期有所延誤,上海以楓電氣設備有限公司進口太科BARTEC限位開關TYP:07-2961-1062/01貨期準時,報價快。
博太科品牌產品包括:
BARTEC嵌入式開關
07-1511
BARTEC限位開關
07-2511
BARTEC微型限位開關
07-2501
BARTEC塑料外殼限位開關
07-2961
BARTEC金屬外殼限位開關
07-295.-..30
BARTEC鑄鋁行程開關
07-2911
技術參數:
Guidelines/Norms
EN 60947-5-1
EN 60947-1
Ambient temperature
T5 for max. +90 °C
T6 for max. +65 °C
depending on rated current
Description
Besides the metal-enclosed precision switch of the RET series, BARTEC also offers a series of limit switches with plastic bodies. The enclosure is made of shock impact resistant proof plastic providing an IP 65 protection class according to IEC/EN 60529. Due to its format several limit switches can be mounted in tandem formation requiring very little space. This allows a multiple triggering of switching operations. The connection cable is equipped with a strain relief device, prewired and safely cast into the enclosure by means of epoxy resin. We supply this robust limit switch with a standard length of 3 m; special lengths are available on request.
The integrated switching element changes over via NC contact with positive break operation. Operator protection corresponds the the GS-ET 15 requirements. Its high vibration resistance and long life are the result of a most extensive laboratory research. The certification for hazardous areas and the high protection class granted thanks to its structural characteristics are the ideal prerequisites for its use in almost all fields of automation, mechanical and high-tec engineering.
Technical data *
Protection class | IP 65 (IEC/EN 60529) |
Dimensions | see data sheet |
Material | shock-resistant thermoplastic material, self-extinguishing UL 94-VO |
Mechanical life | > 10 6 switching cycles |
Voltage | AC 250 V/DC 230 V |
Current | AC 6 A/DC 0.25 A |
Connection | 4 core cable H05VV-F cross section: 0.75 mm2 cable length: 3 m, 5 m, 10 m |
*Refer to the documentation for more detailed information
